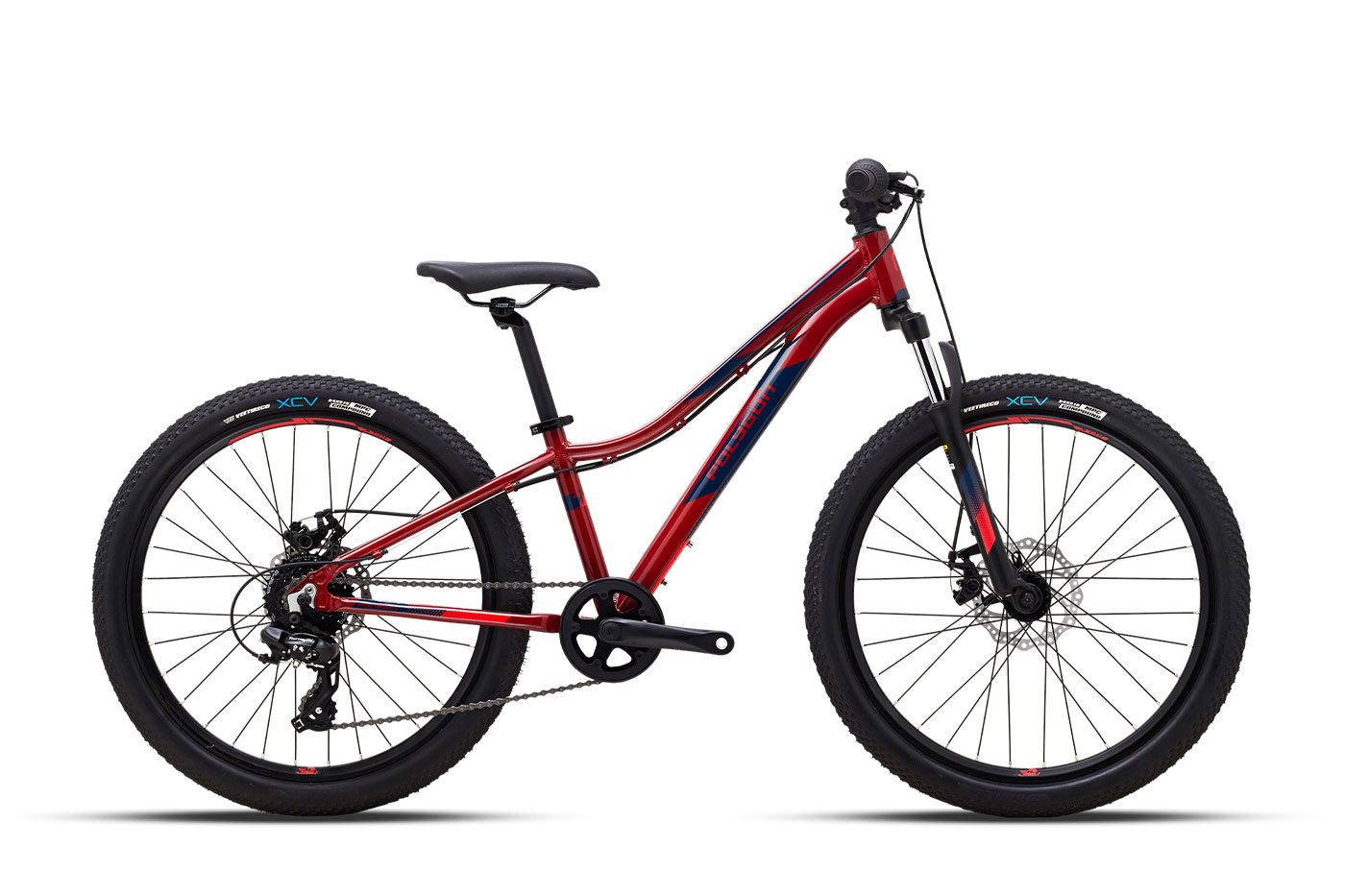

RED

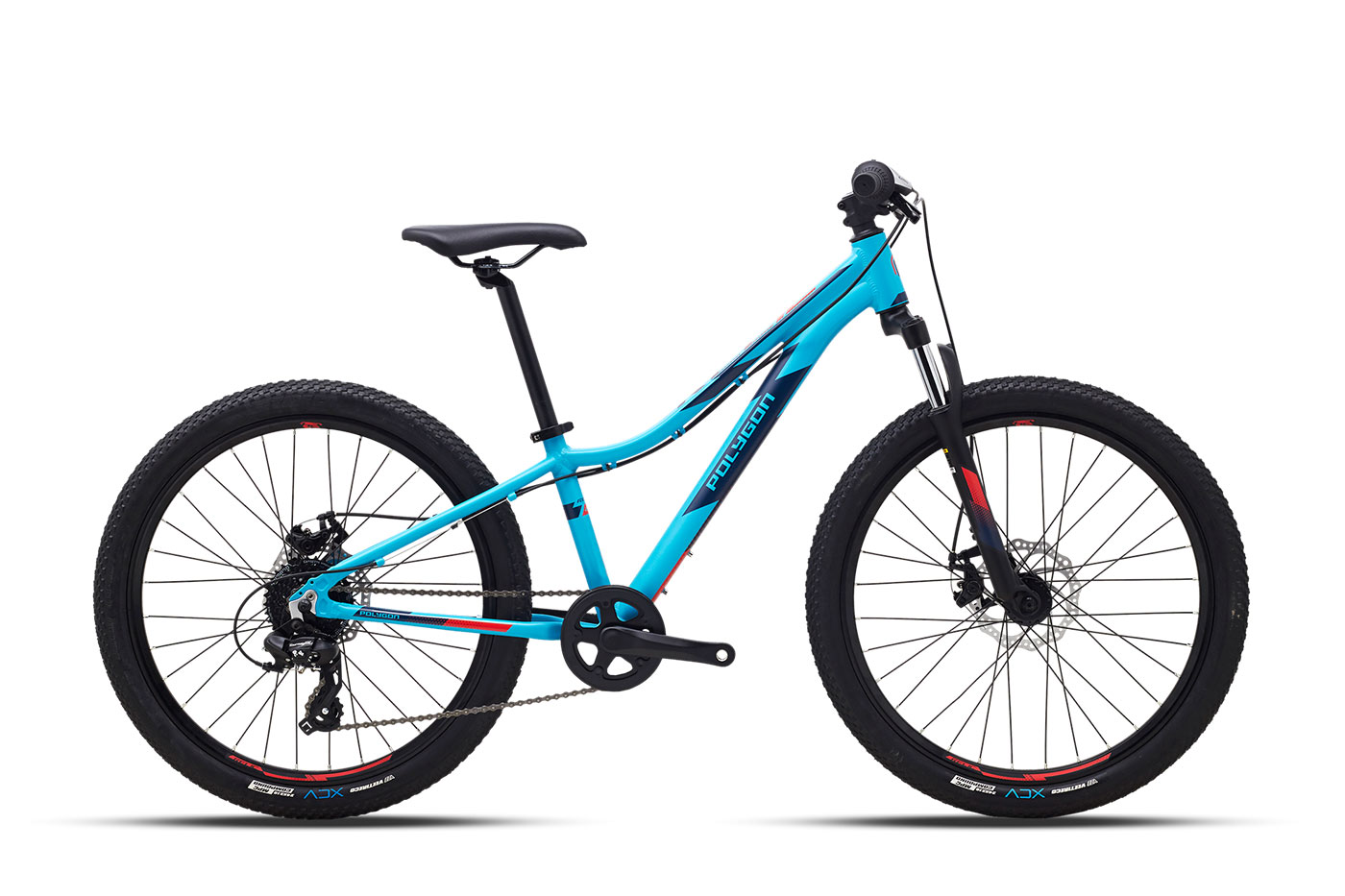

BLUE
税込価格:¥51,700
FEATURE:| MODEL NAME | RELIC 24 |
|---|---|
| MODEL CATEGORY | JUNIOR |
| SIZES (CT) | ONE SIZE |
| COLOR | BLUE, RED |
| FRAME | AL6 RIGID FRAME |
| FORK | SUSPENSION FORK 60MM TRAVEL |
| HANDLEBAR | STEEL HANDLEBAR, W:640MM, R:20MM, B:6DEGREE, BB:25.4MM |
| STEM | ALLOY HANDL E STEM, EXT:40MM, R/D:7DEG, BB:25.4mm |
| HEADSET | ZERO STACK (ZS) CARTRIDGE BEARING FOR NORMAL HEAD TUBE , ZS:44/28.6MM EC:44/30MM |
| SADDLE | POLYGON SAD DLE |
| SEATPOST | ALLOY SEATPOST |
| CRANKSET | ALLOY 32T W/SINGLE C HAIN GUARD, 152mm |
| PEDAL | PP PEDAL W/REFLECTOR |
| BOTTOM BRACKET | CARTRIDGE BEARIN G 68x119mm |
| CHAIN | KMC Z-8 .3 |
| CASSETTE SPROCKET | SHIMANO CS-HG200 12-32T, 8 SPEEDS |
| REAR DERAILLEUR | SHIMANO TOURNEY RD-TX800-SGS DIRECT ATTACH |
| SHIFTING LEVER | SHIMANO SL-RS45, 1X8 SPEED REVOSHIFT |
| BRAKE | CLARKS CMD-23 MECHANICAL DISC |
| ROTOR | 160MM 6-BOLTS |
| TYRE | VEE TIRE 24”X2.10” |
| WHEELSET | ALLOY DOUBLE WALL 507-20, FOR 507-28/62 32H |
| WEIGHT | 11.9 KG |
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 430 | 75 | 75 | 110 | 71 | 530 | 281 | 70 (DROP) | 440 | 1030 | 380 | 558 | 705 |
| M | 460 | 74.5 | 74.5 | 140 | 71 | 553 | 281 | 70 (DROP) | 440 | 1050 | 390 | 586 | 735 |
| L | 490 | 74 | 74 | 170 | 71.5 | 577 | 281 | 70 (DROP) | 440 | 1065 | 400 | 617 | 766 |
| 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | 180 | 185 | 190 | cm | |
| S | ||||||||||||
| M | ||||||||||||
| L |
※商品仕様、カラーその他は、予告なく変更される可能性があります
