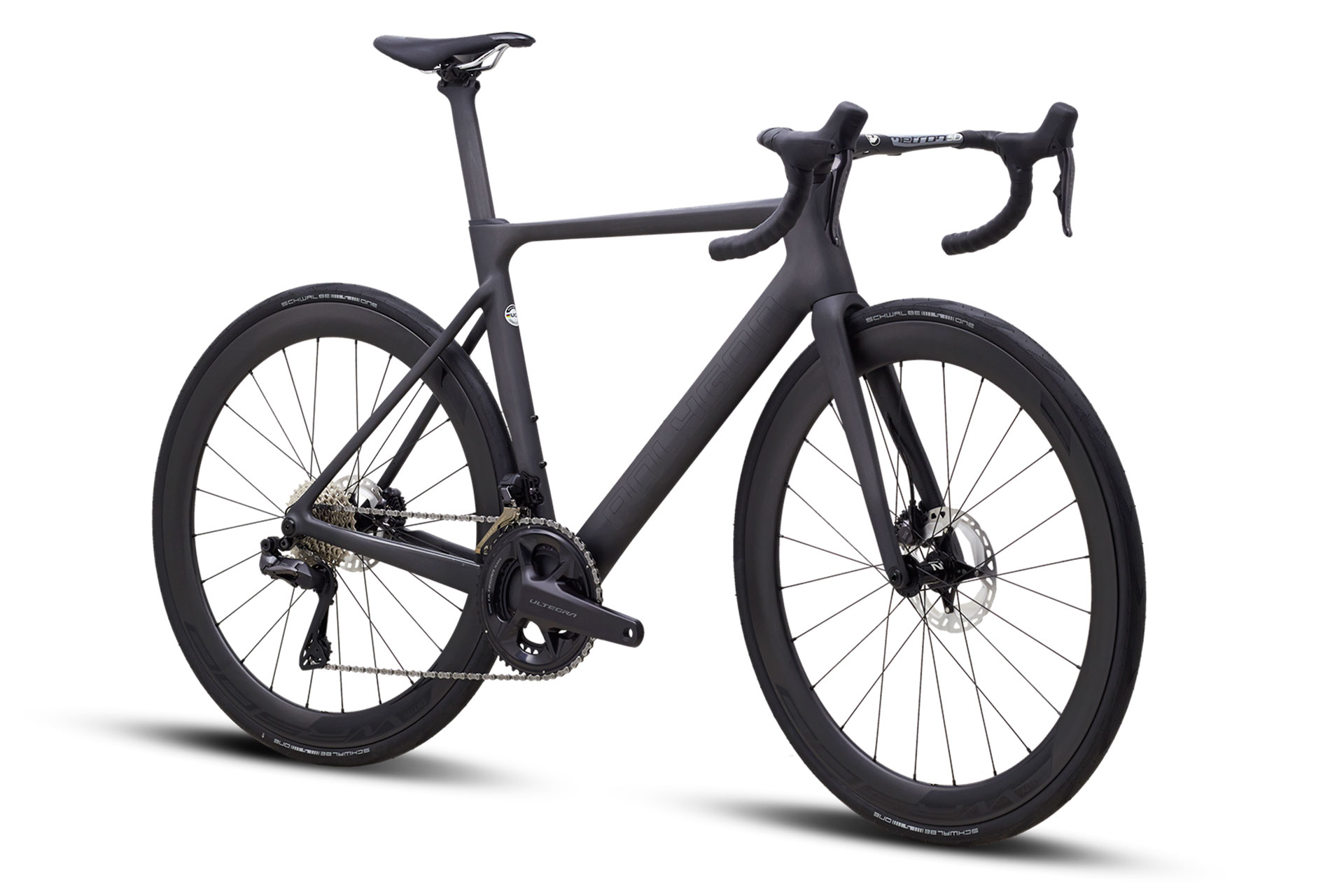

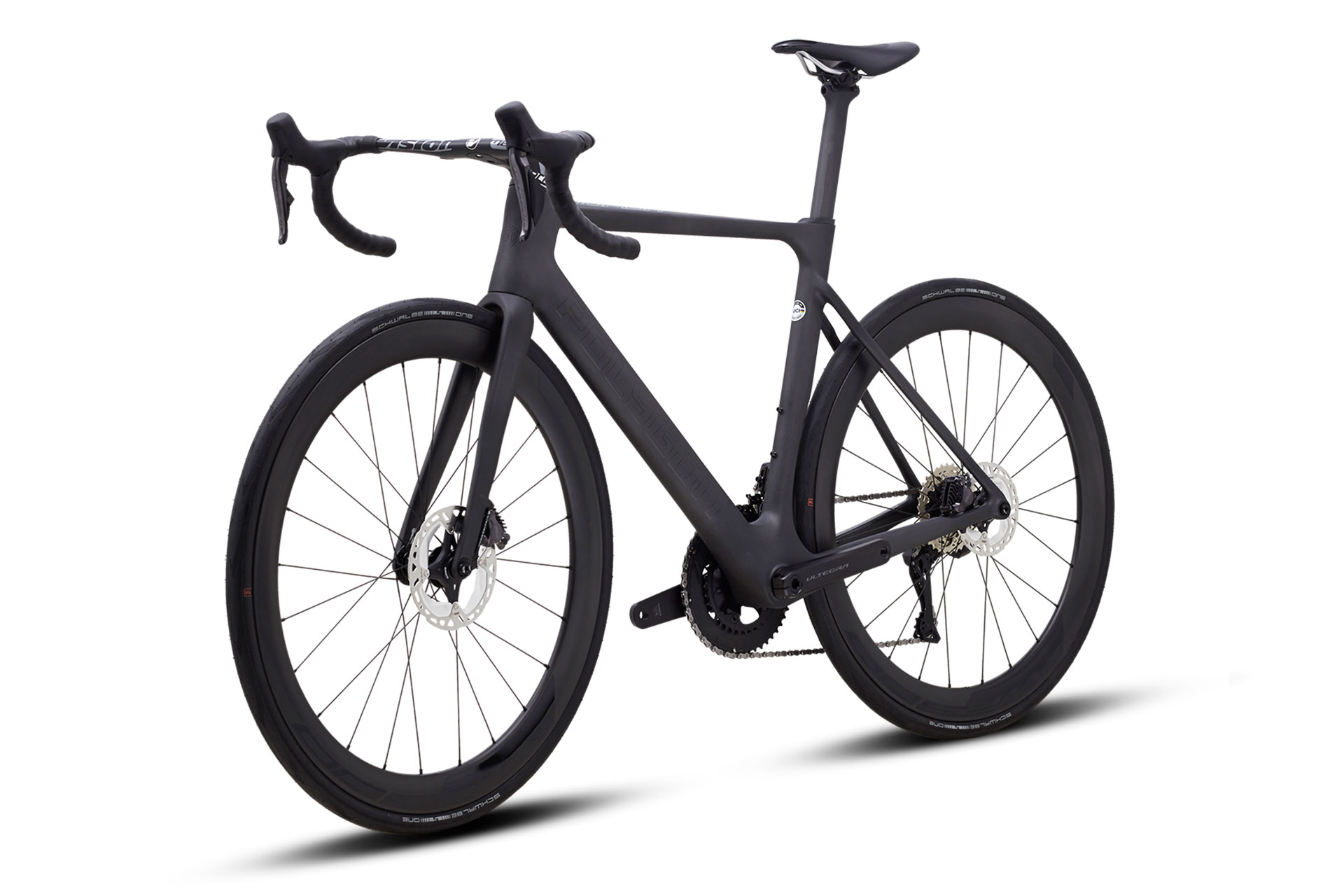

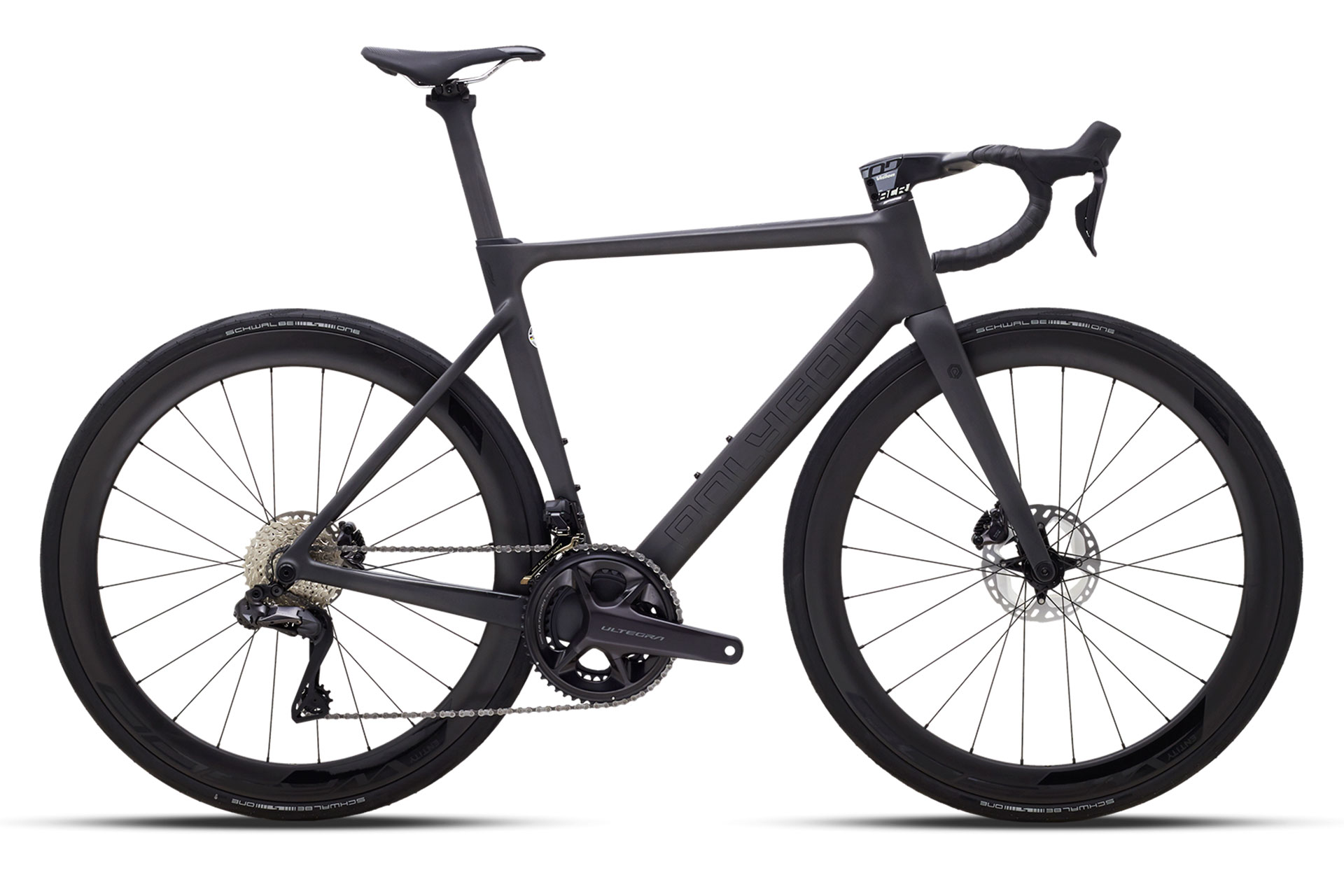

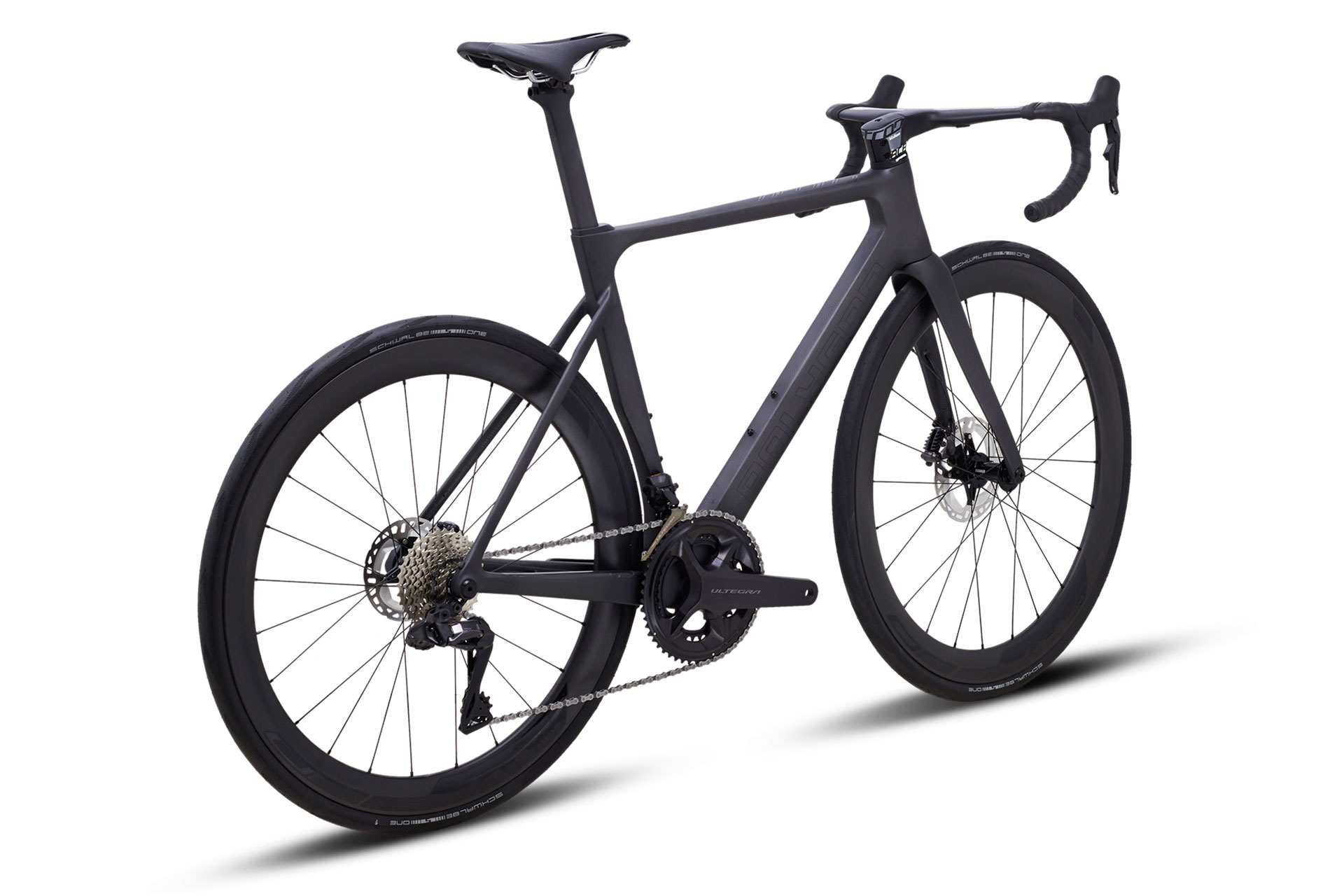

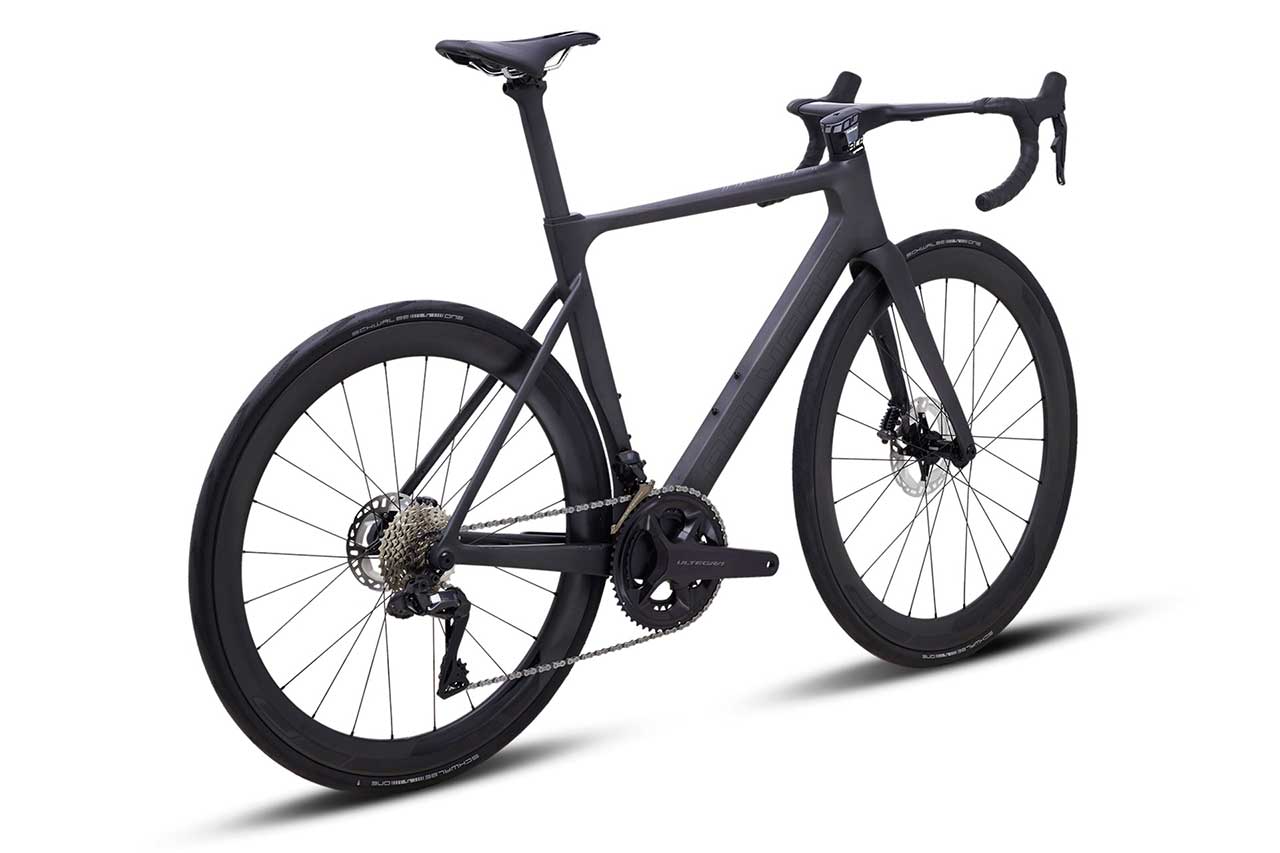

JET Black
乱気流を残さずに空気を切り裂くように設計された、業界トップレベルを達成した高性能ロードバイク。
完成車税込価格:¥962,500
フレームセット税込価格:¥561,000
| Frame | ACX PERFORMANCE UCI APPROVED |
|---|---|
| Fork | ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2" |
| Crank | SHIMANO ULTEGRA FC-R8100 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) |
| Shifter | SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED DCL |
| Cassette | SHIMANO ULTEGRA CS-R8100-12 11-34T |
| Rear Derailleur | SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH |
| BB | SHIMANO SM-BB92-41B, PRESSFIT BB86 |
| Saddle | ENTITY FLUX2, CR-MO Φ7mm |
| Seatpost | CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL) |
| Handlebar | VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L, XL) |
| BB: INTEGRATED, R/D: 125mm, B/R: 80mm | |
| Handlestem | VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL) |
| BB: INTEGRATED, R/D: 6degree | |
| Headset | INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 |
| Wheel Set | ENTITY WR5 DISC (50mm) CARBON 24H TUBELESS READY W/ TUBELESS TAPE INSTALLED |
| Tire | SCHWALBE ONE ADDIX TLE 700x28C |
| Brake | SHIMANO ULTEGRA HYDRAULIC DISC |
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 475 | 74.7 | 74.7 | 115 | 71.8 | 517.31 | 271 | 73(DROP) | 415 | 975.82 | 375 | 520.2 | 739.4 |
| S | 500 | 74.3 | 74.3 | 130 | 72 | 530.4 | 271 | 73(DROP) | 415 | 984 | 380 | 535.2 | 763.2 |
| M | 520 | 74 | 74 | 145 | 72.3 | 543.0 | 271 | 73(DROP) | 415 | 991.1 | 385 | 550.4 | 780.8 |
| L | 545 | 73.7 | 73.7 | 160 | 72.3 | 555.1 | 271 | 73(DROP) | 415 | 1000.6 | 390 | 564.7 | 802.5 |
| XL | 570 | 73.3 | 73.3 | 175 | 72.8 | 569.25 | 271 | 73(DROP) | 415 | 1005.8 | 385 | 580.8 | 824.28 |
| 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | 180 | 185 | 190 | cm | |
| XS | ||||||||||||
| S | ||||||||||||
| M | ||||||||||||
| L | ||||||||||||
| XL |
※商品仕様、カラーその他は、予告なく変更される可能性があります
