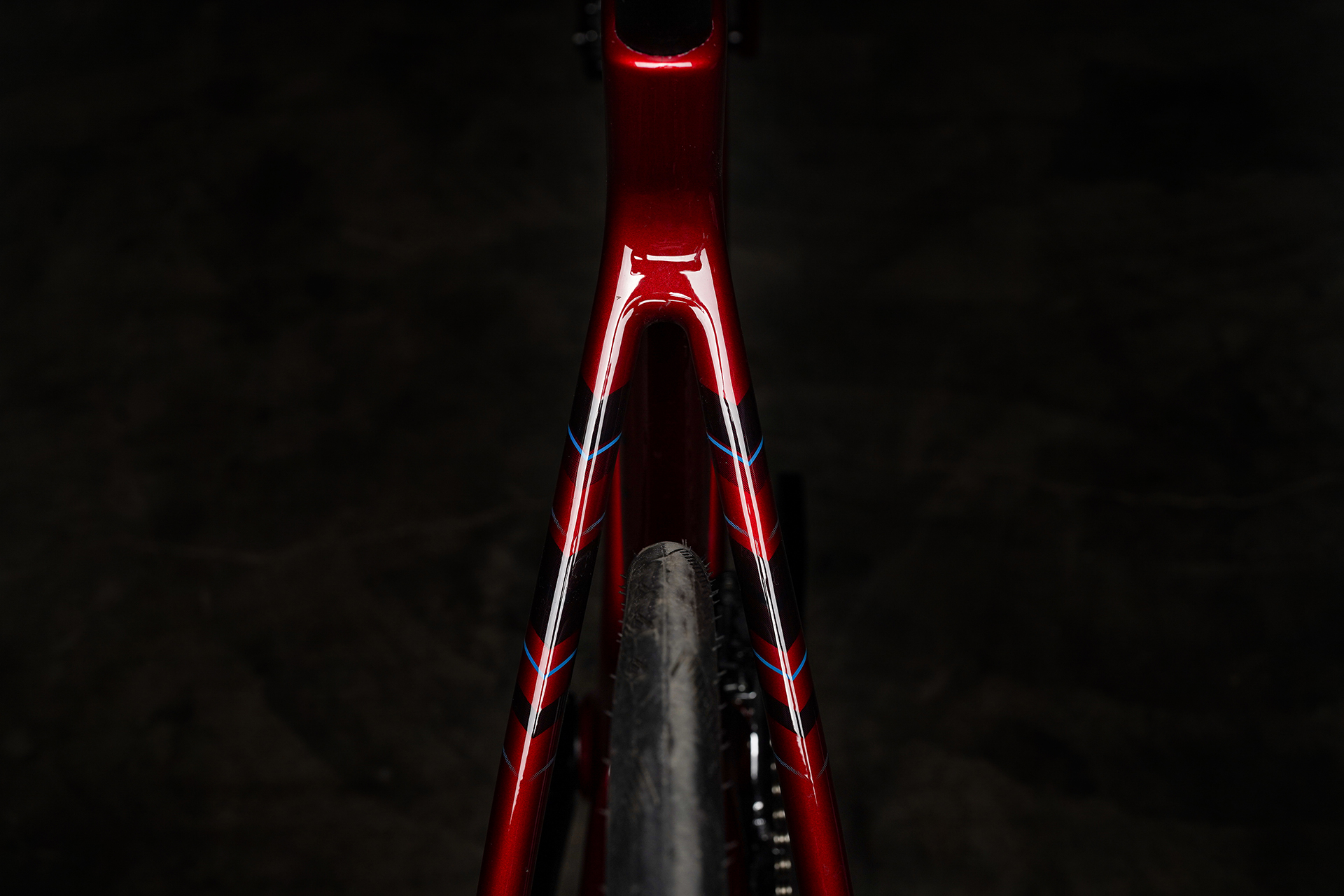

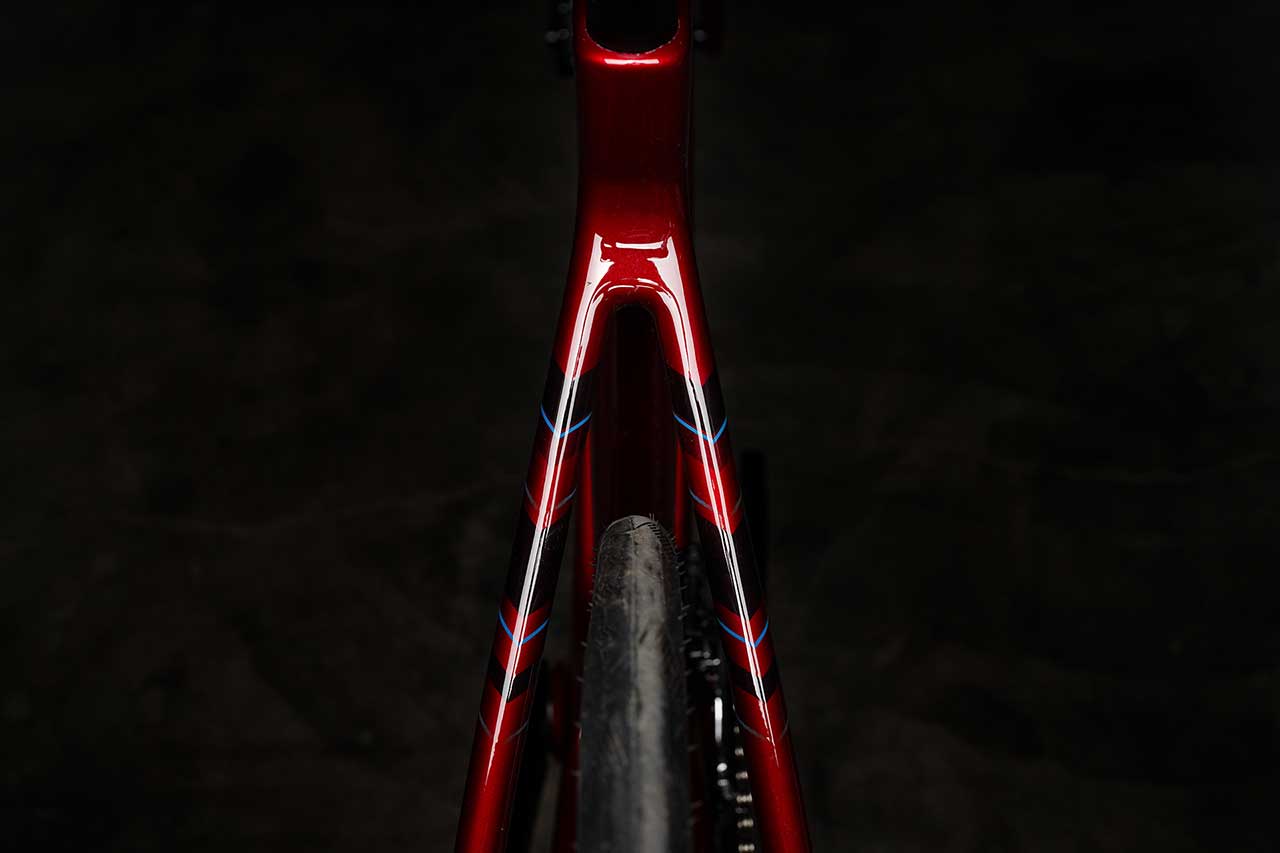

剛性を低下させることなく路面の振動を吸収する特殊なシートステー デザインが採用されており、ライダーが疲労することなく継続的にパフォーマンスを発揮できます。

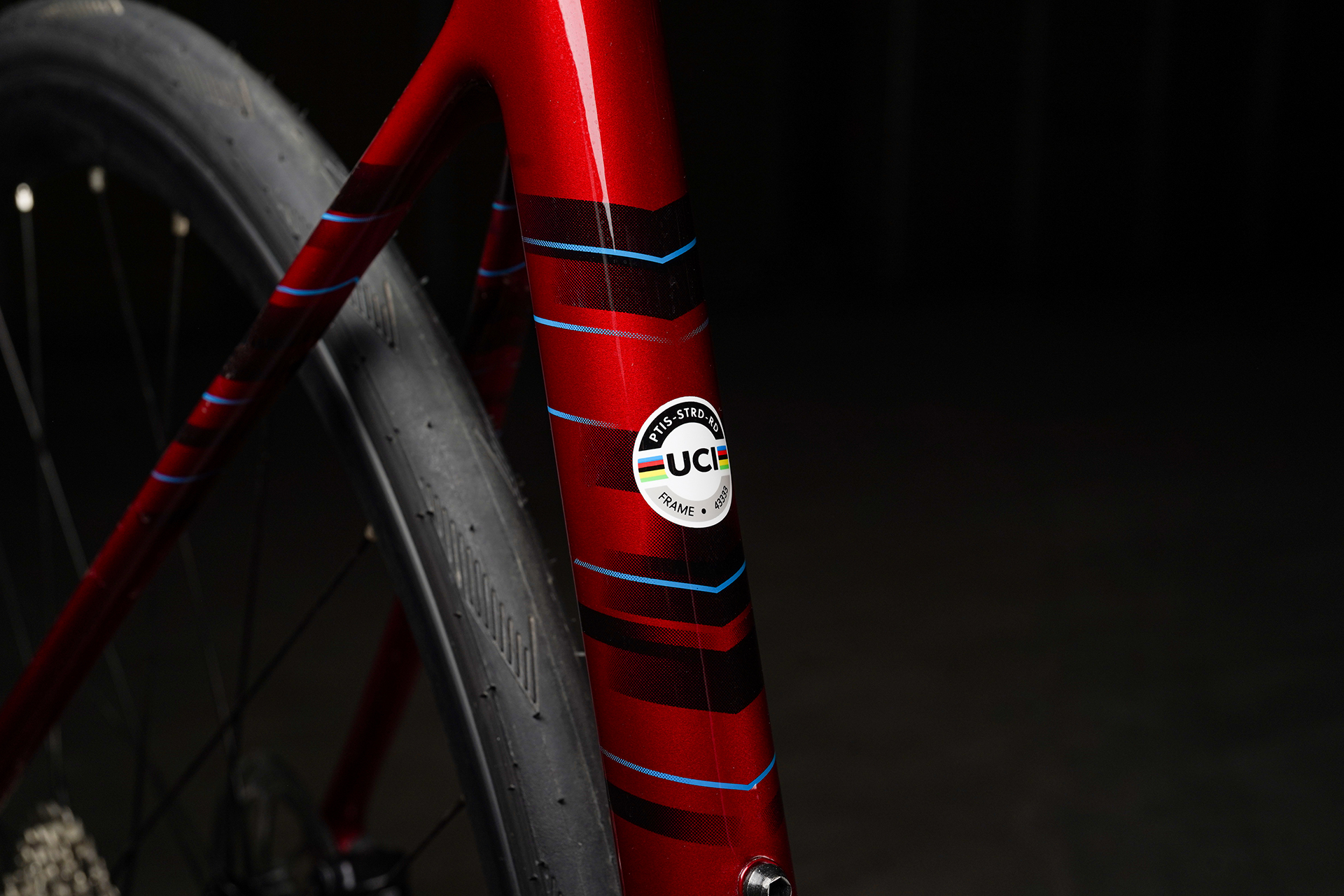

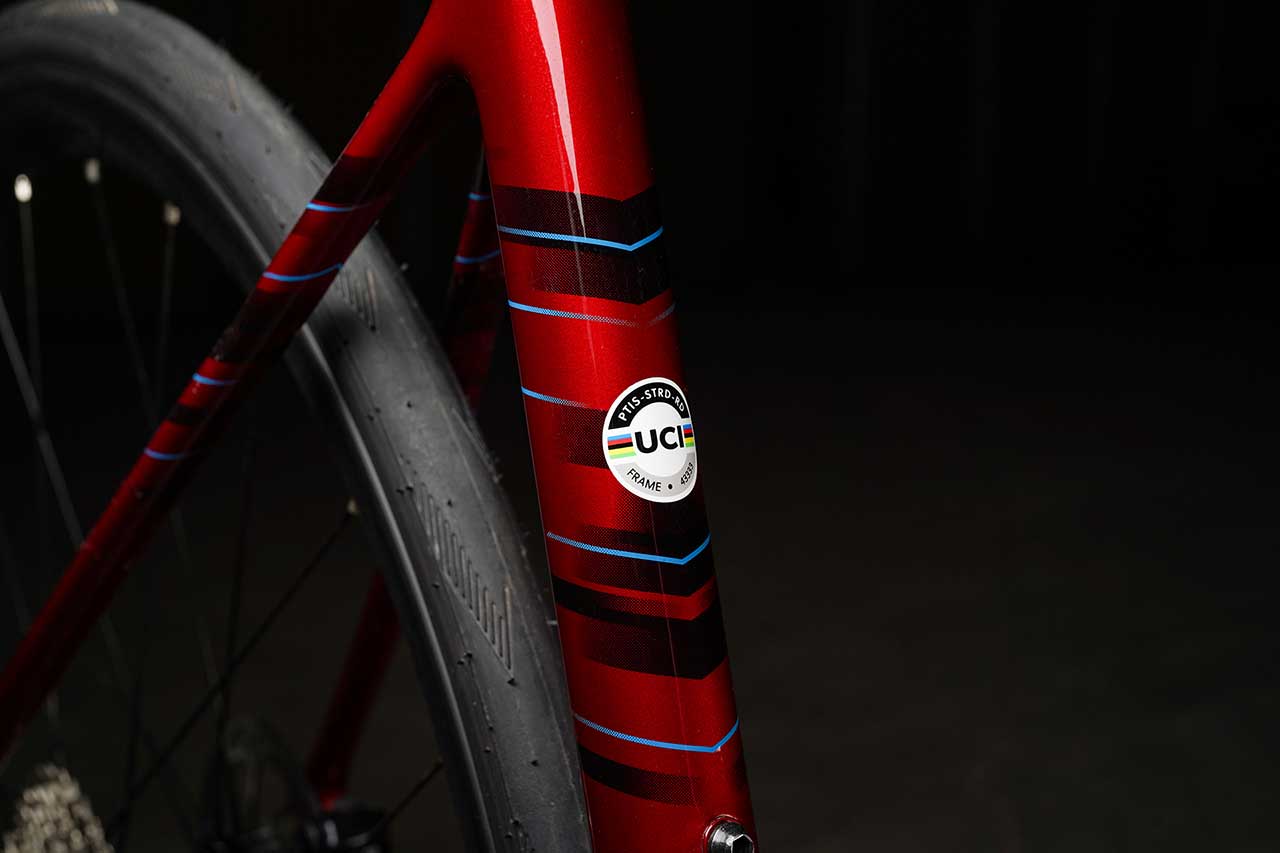

空気抵抗を減らすためワイヤーを内装。UCI 承認。
税込価格:¥308,000

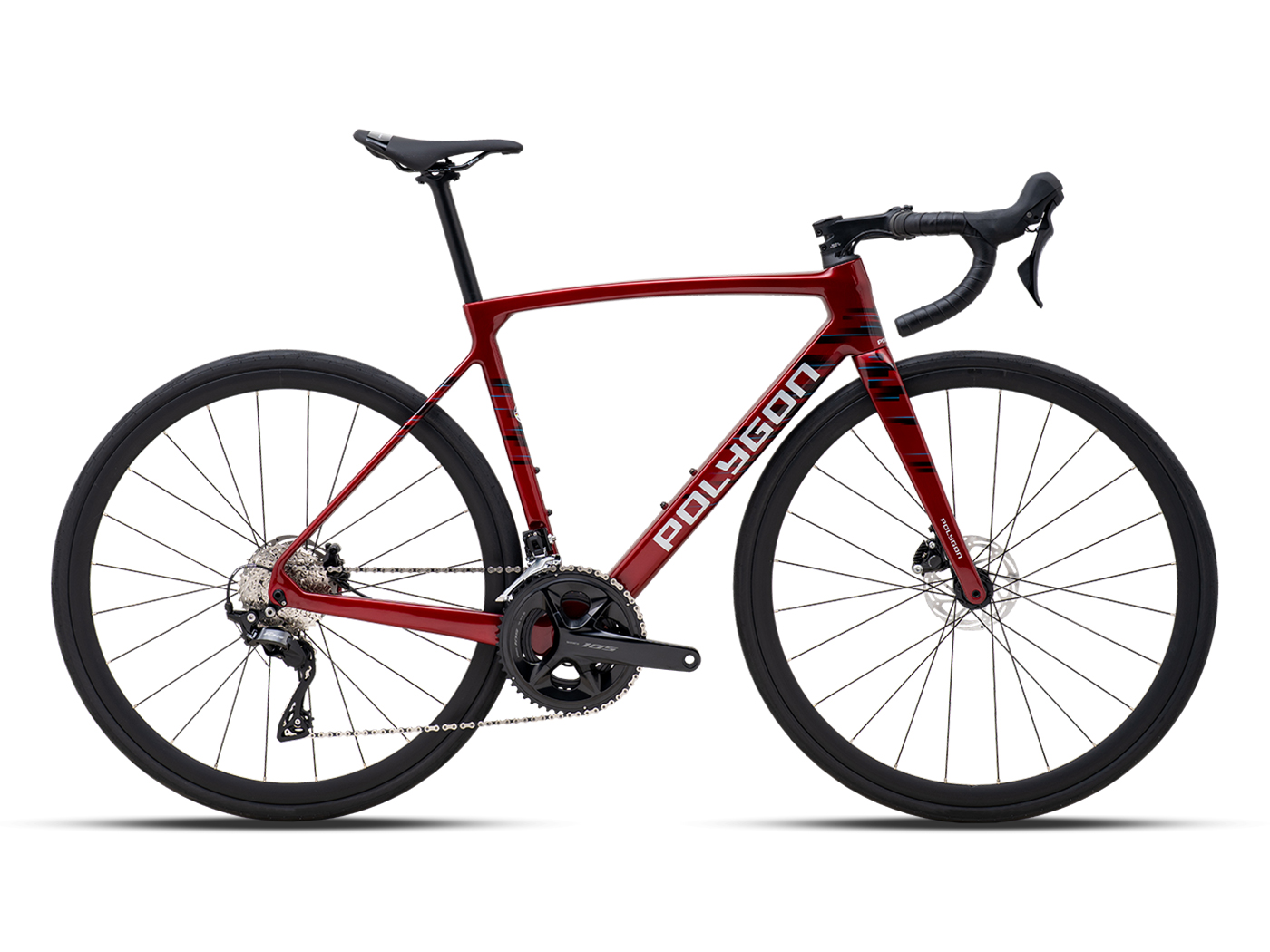

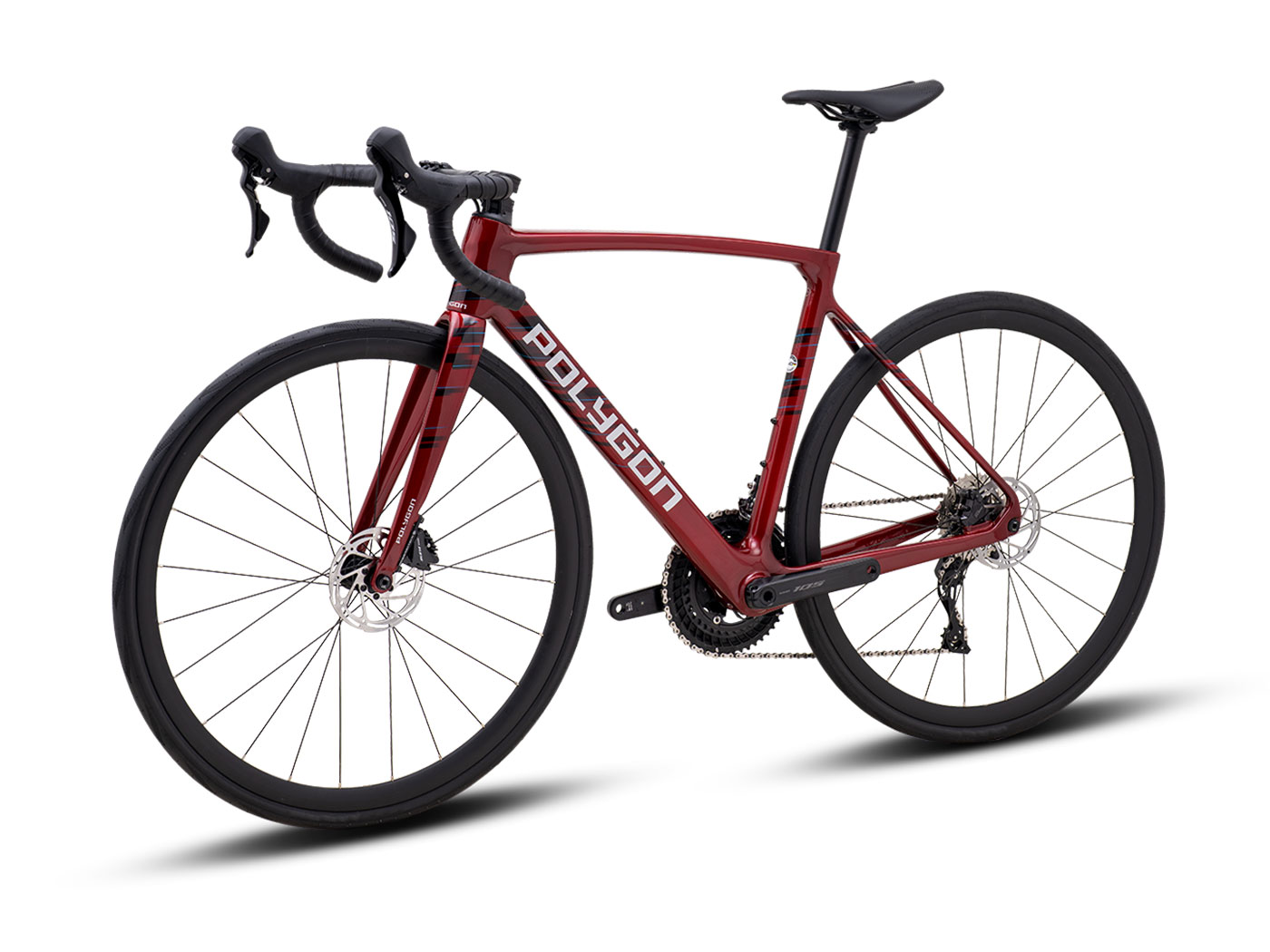

FEATURE:| フレーム | ACX ALL-ROUND UCI APPROVED |
|---|---|
| Color | Red |
| Size | XS, S, M, L |
| Fork | ACX ALL-ROUND UCI APPROVED |
| Crank | SHIMANO 105 FC-R7100 50/34T |
| Shifter | SHIMANO 105 ST-R7120, 2x12-SPEED DUAL CONTROL LEVER |
| Cassette | SHIMANO 105 CS-R7101 11-34T |
| Rear Derailleur | SHIMANO 105 RD-R7100-SS DIRECT ATTACH |
| BB | SHIMANO BB-RS500-PB, PRESSFIT BB86 |
| Saddle | ENTITY FLUX2, CR-MO o 7mm |
| Seatpost | POLYGON XPERT ALLOY, DxL: 27.2 x 350mm |
| Handlebar | POLYGON XPERT ALLOY, W: 400mm (XXS, XS, S) / 420mm (M, L) / 440mm (XL) |
| BB: 31.8mm, R/D: 125mm, B/R: 70mm | |
| Handlestem | POLYGON XPERT ALLOY, EXT: 90mm (XXS, XS, S) / 100mm (M, L) / 110mm (XL) |
| BB: 31.8mm, R/D: 10degree | |
| Headset | INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 |
| Wheel Set | POLYGON RD6 DISC TUBELESS READY W/ TUBELESS TAPE INSTALLED |
| Tire | SCHWALBE ONE ADDIX TLE 700x28C |
| Brake | SHIMANO 105 BR-R7170 HYDRAULIC |
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 454 | 75 | 75 | 90 | 72 | 515 | 271.5 | 72.5 Drop | 415 | 975.6 | 382.5 | 494.7 | 799.4 |
| S | 474 | 74.5 | 74.5 | 105 | 72.5 | 525 | 271.5 | 72.5 Drop | 415 | 977.5 | 383.4 | 510.7 | 748.7 |
| M | 500 | 74 | 74 | 130 | 73 | 555 | 274 | 70 Drop | 415 | 984.9 | 386.9 | 533.9 | 775.9 |
| L | 525 | 73.5 | 73.5 | 155 | 73 | 555 | 274 | 70 Drop | 415 | 995 | 389.8 | 557.7 | 801.2 |
| 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | 180 | 185 | 190 | cm | |
| XS | ||||||||||||
| S | ||||||||||||
| M | ||||||||||||
| L |
※商品仕様、カラーその他は、予告なく変更される可能性があります
