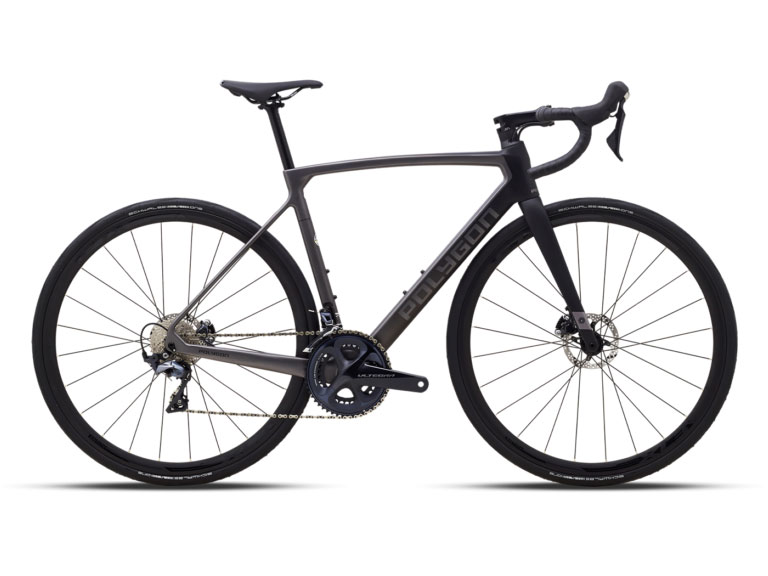

STRATTOS S8Dサムネイル1

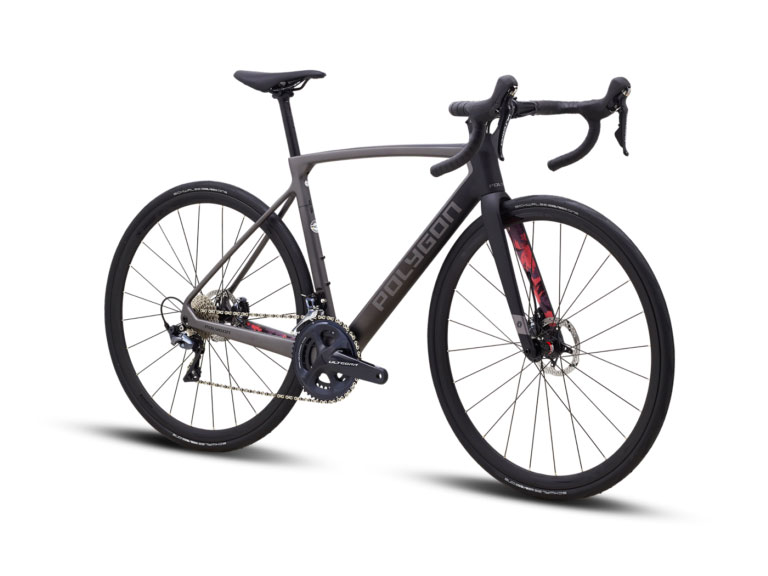

STRATTOS S8Dサムネイル2

ハイスペックなオールラウンドロード

税込価格:¥440,000

FEATURE:
  • 軽量カーボンフレーム&フォーク
  • ブレーキ、シフトケーブル内蔵デザイン
  • SHIMANO ULTEGRA ディスクロード
  • 剛性の高く振動吸収性に優れるテーパードカーボンフォーク

SPECIFICATION

FRAME ACX ALL-ROUND UCI APPROVED, THRU-AXLE 12x142mm TP1.5
FORK ACX ALL-ROUND UCI APPROVED, TAPER 1-1/8” TO 1-1/2”
HANDLERBAR ENTITY XPERT ALLOY, W:400MM(XS, S) 420MM(M, L) BB:31.8MM R/D:125MM, B/R:70MM
STEM FSA NS SMR, EXT:90mm(XS, S) /100mm(M, L), BB:31.8MM B/R:10DEG
HEADSET INTEGRATED (IS)SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
SADDLE ENTITY FLUX2, Φ7mm
SEATPOST ENTITY XPERT ALLOY, DXL:27.2x350mmmm, OFFSET:15mm
CRANKSET SHIMANO ULTEGRA FC-R8000 50/34T , 165MM(XS), 170MM(S, M, L)
BOTTOM BRACKET SHIMANO BB-RS500-PB
CHAIN KMC X11-1
CASSETTE SPROCKET SHIMANO, ULTEGRA CS-R8000 11-30T 11-SPEED
FRONT DERAILLEUR SHIMANO, ULTEGRA FD-R8000
REAR DERAILLEUR SHIMANO, ULTEGRA RD-R8000-SS DIRECT ATTACHMENT
SHIFTING LEVER SHIMANO ULTEGRA ST-R8020 2x11-SPEED DCL
BRAKE LEVER SHIMANO ULTEGRA ST-R8020 HYDRAULIC DISC BRAKE
BRAKE SHIMANO ULTEGRA HYDRAULIC DISC BRAKE
ROTOR SHIMANO SM-RT70 140MM CENTER LOCK
TYRE PERFORMANCE TIRE 700X28C
WHEELSET ENTITY XL3 DISC RIMS(30MM) W/ TUBELESS TAPE, THRU AXLE 12x100x142mm
SIZE (CT) XS, S, M, L
COLOR BLACK ONYX
WEIGHT 9.1kg (M size, W/O Pedals)

GEOMETORY

geometry img
  A B C D E F G H I J K L M
Size Seat Tube Length Seat Tube Angle Effective Seat Tube Angle Head Tube Length Head Tube Angle Effective Top Tube BB Height BB Offset Chainstay Length Wheelbase Frame Reach Frame Stack Standover Height
XS 454 75 75 90 72 515 271.5 72.5
(Drop)
415 975.6 382.5 494.7 729.4
S 474 74.5 74.5 105 72.5 525 271.5 72.5
(Drop)
415 977.3 383.4 510.7 748.7
M 500 74 74 130 73 540 274 70
(Drop)
415 984.9 386.9 533.9 775.9
L 525 73.5 73.5 155 73 555 274 70
(Drop)
415 995 389.8 557.7 801.2

SIZE CHART

  140 145 150 155 160 165 170 175 180 185 190 cm
XS
S
M
L

※商品仕様、カラーその他は、予告なく変更される可能性があります
