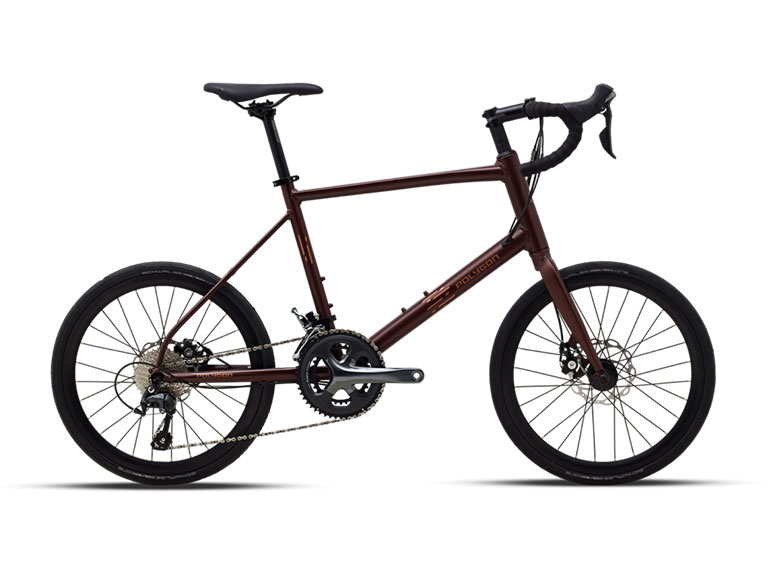

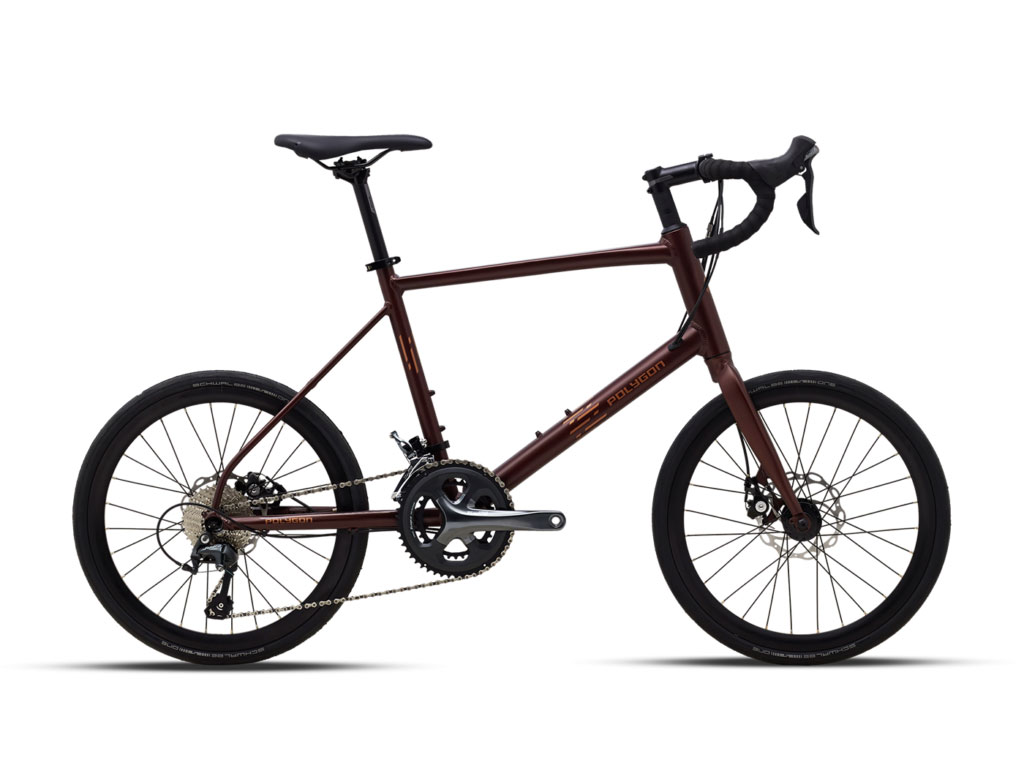

RED

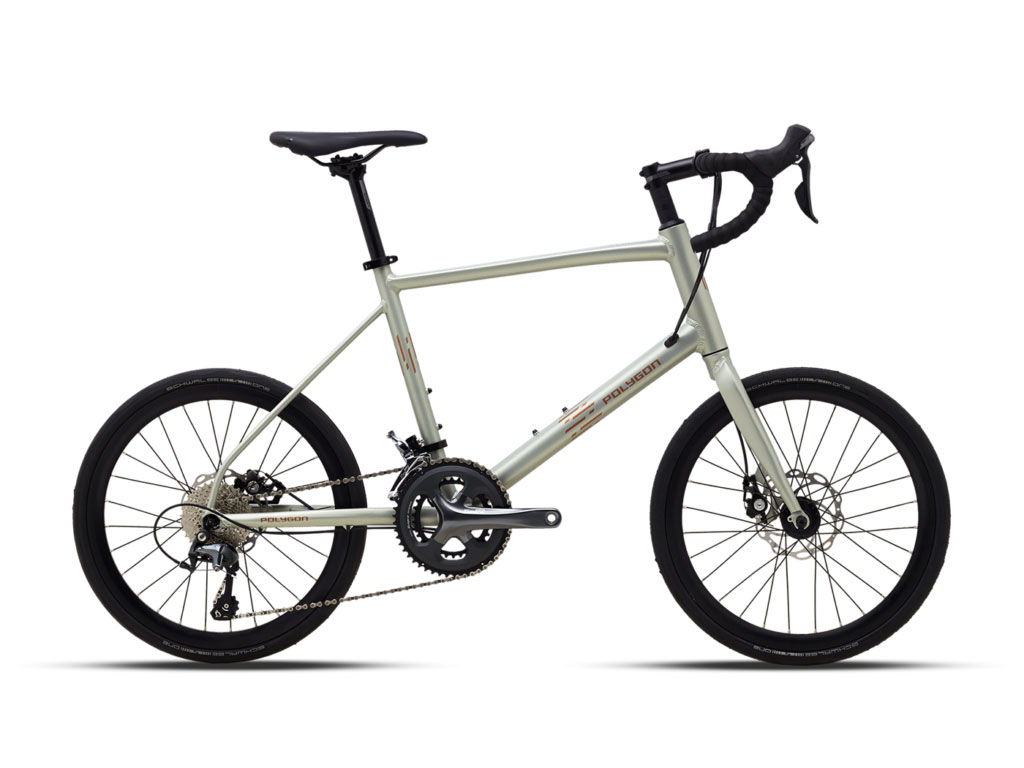

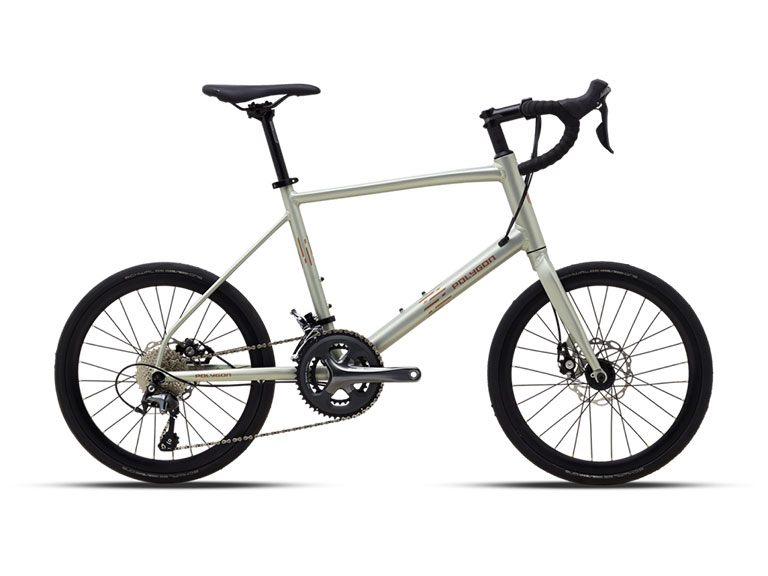

SILVER
税込価格:¥148,500
FEATURE:| FRAME | ALX CLASSIC MINIVELO, 10 0X135 OLD |
|---|---|
| FORK | ALLOY RIGID FORK, STRAIG HT |
| HANDLERBAR | ENTITY SPORT, W:420MM BARBORE 31.8MM |
| STEM | ENTITY ALLOY 90MM |
| HEADSET | ZERO STACK(ZS) SEALED BEARING, ZS 44/28.6 , ZS44/30 |
| SADDLE | ENTITY SADDLE |
| SEATPOST | ENTITY SPORT 27.2mmx350mm |
| CRANKSET | PRAXIS ALBA M24 50x34T, CRANK ARM 170MM |
| BOTTOM BRACKET | PRAXIS M24 |
| CHAIN | KMC X10-1 |
| CASSETTE SPROCKET | SHIMANO CS-HG500 10 SPEED 11-34T |
| FRONT DERAILLEUR | SHIMANO TIAGRA W/ANGLE ADAPTOR |
| REAR DERAILLEUR | SHIMANO TIAGRA RD-4700 10 SPEED DIRECT ATTACH |
| SHIFTING LEVER | SHIMANO TIAGRA 2×10 SPEEDS DUAL CONTROL LEVER |
| BRAKE LEVER | SHIMANO TIAGRA ST-4700 |
| FRONT BRAKE | TEKTRO MD-C400 |
| ROTOR | TEKTRO TR160-6B 160 MM |
| TYRE | 20”1-1/8 (451-28) Maximum Capacity 20x1-3/8 |
| WHEELSET | DOUBLE WALL WHEELSET WITH ALLOY HUB |
| SIZE (CT) | ONE SIZE |
| COLOR | RED, SILVER |
| WEIGHT | 10.99 KG |
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 460 | 73.5 | 73.5 | 225 | 70.5 | 520 | 264 | 10 (DROP) | 410 | 1010 | 375 | 409.8 | 694 |
| 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | 180 | 185 | 190 | cm | |
| S |
※商品仕様、カラーその他は、予告なく変更される可能性があります
